| Management number | 230836924 | Release Date | 2026/06/18 | List Price | US$35.98 | Model Number | 230836924 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

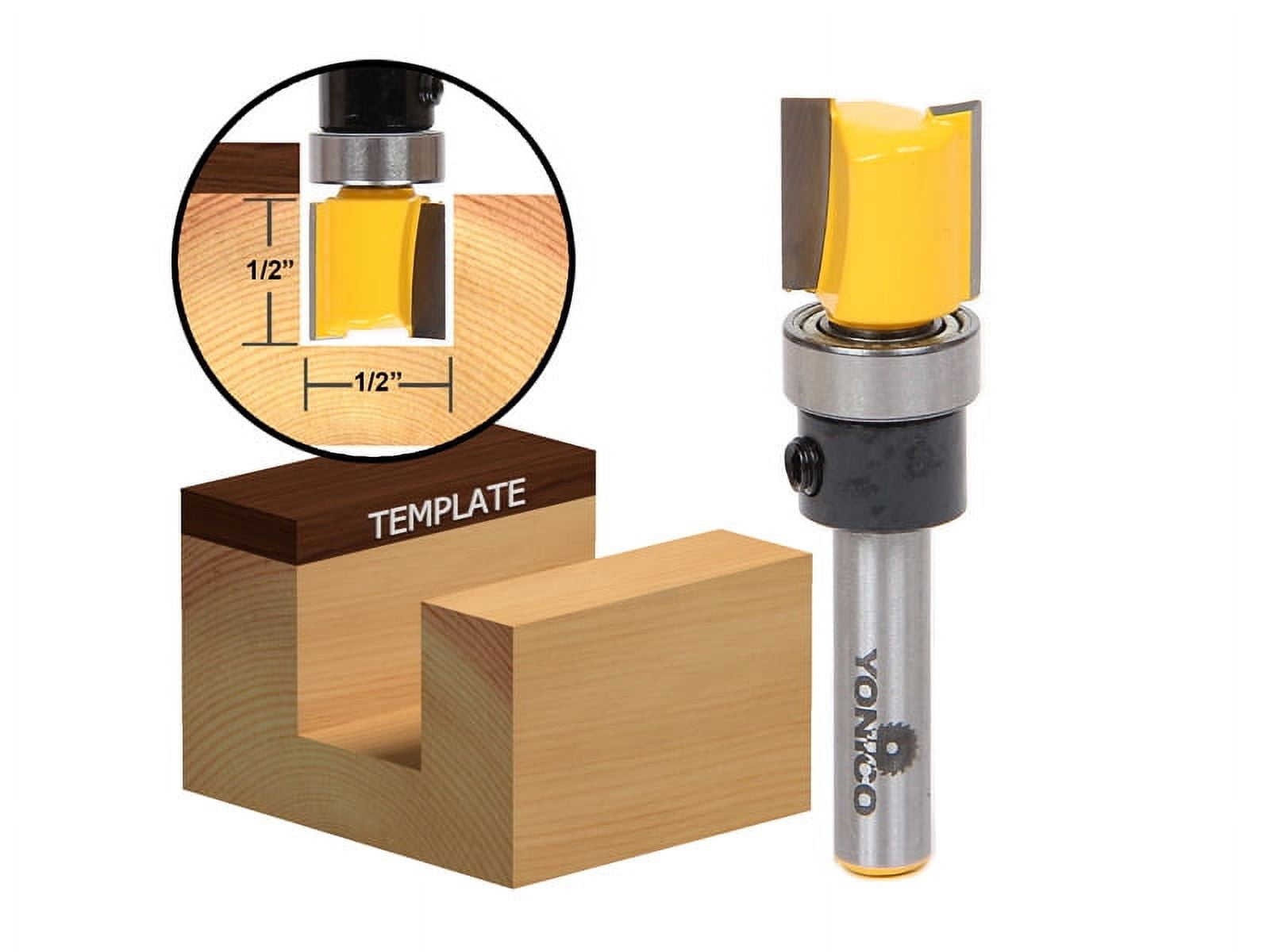

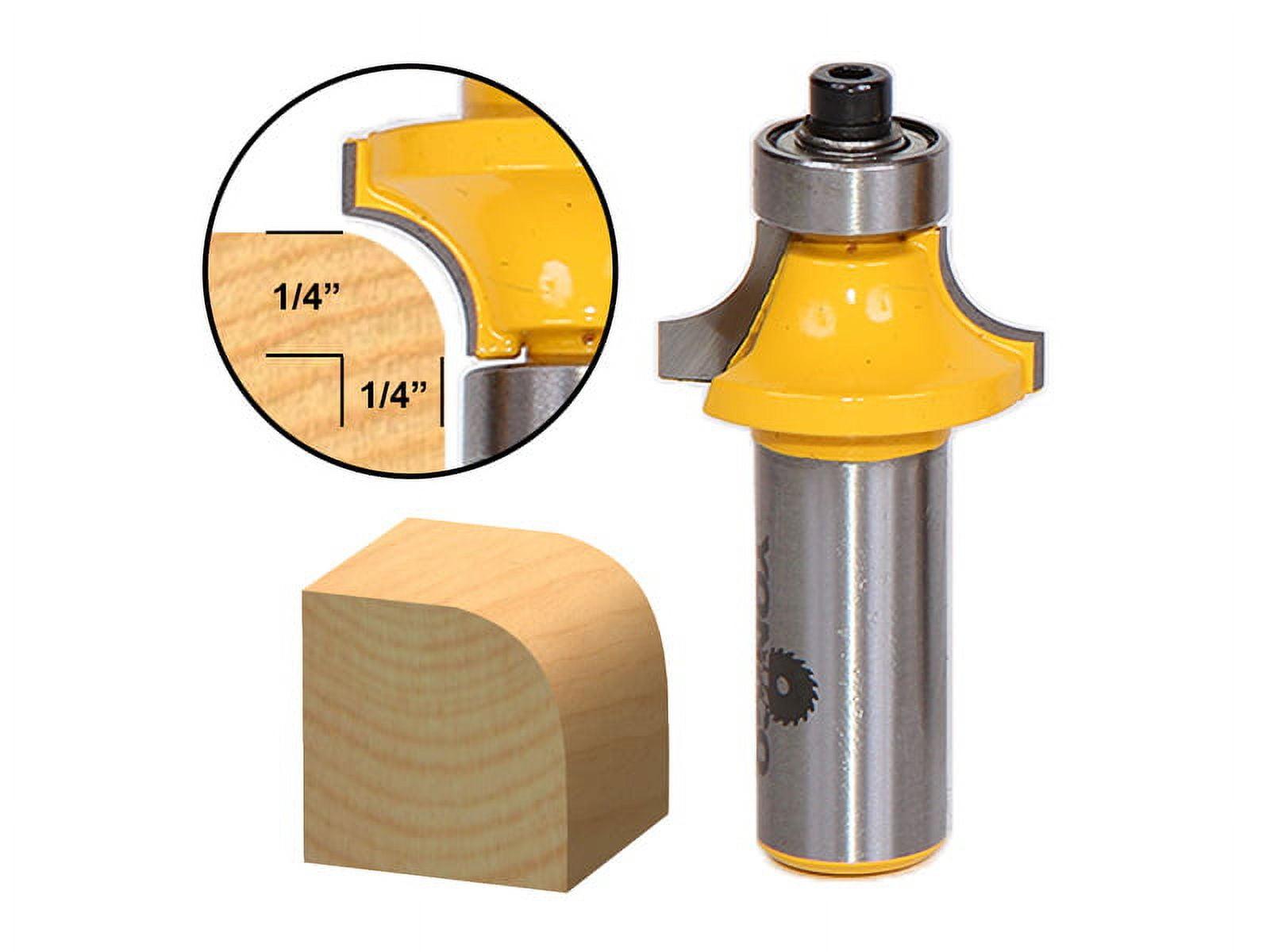

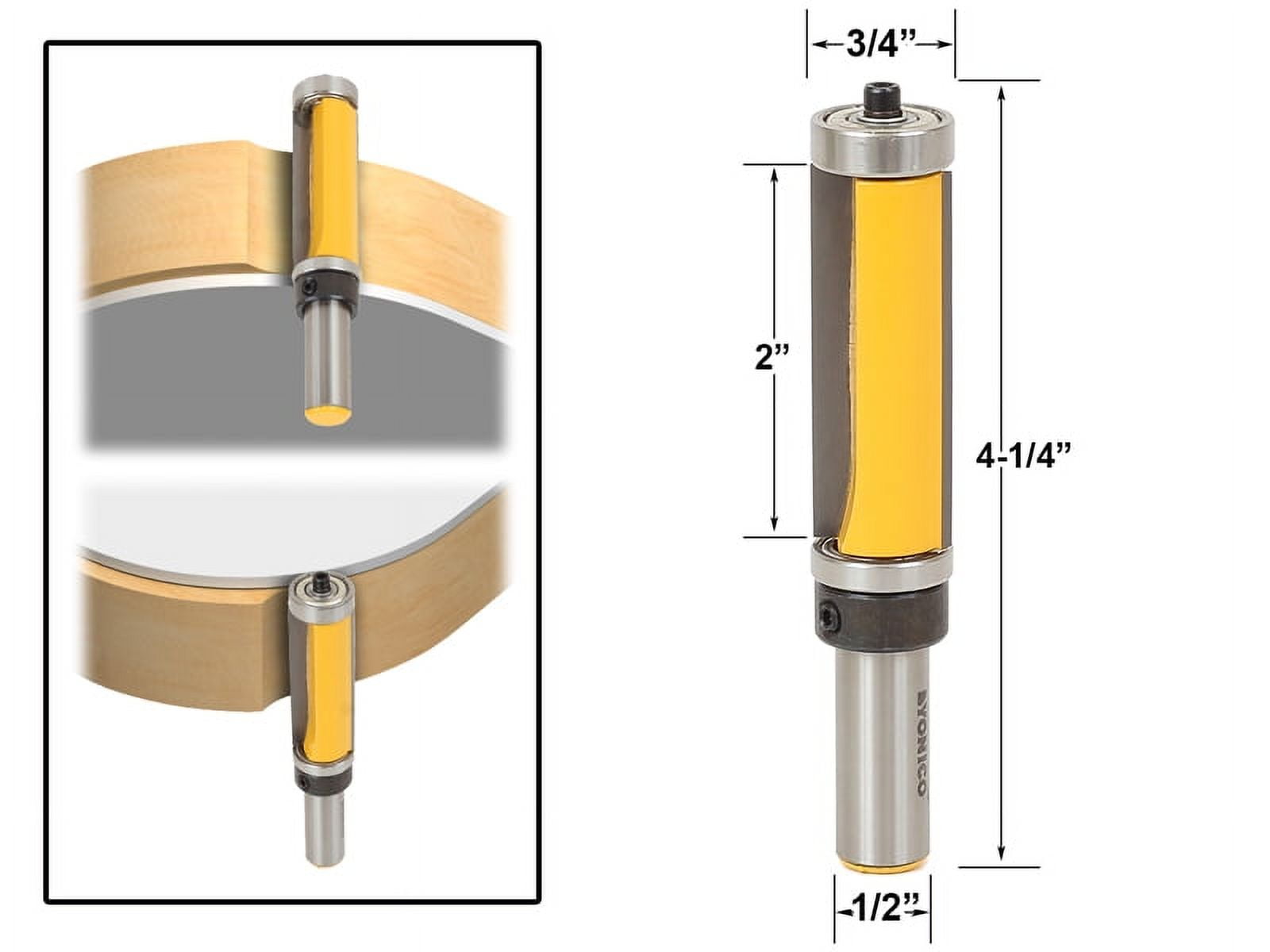

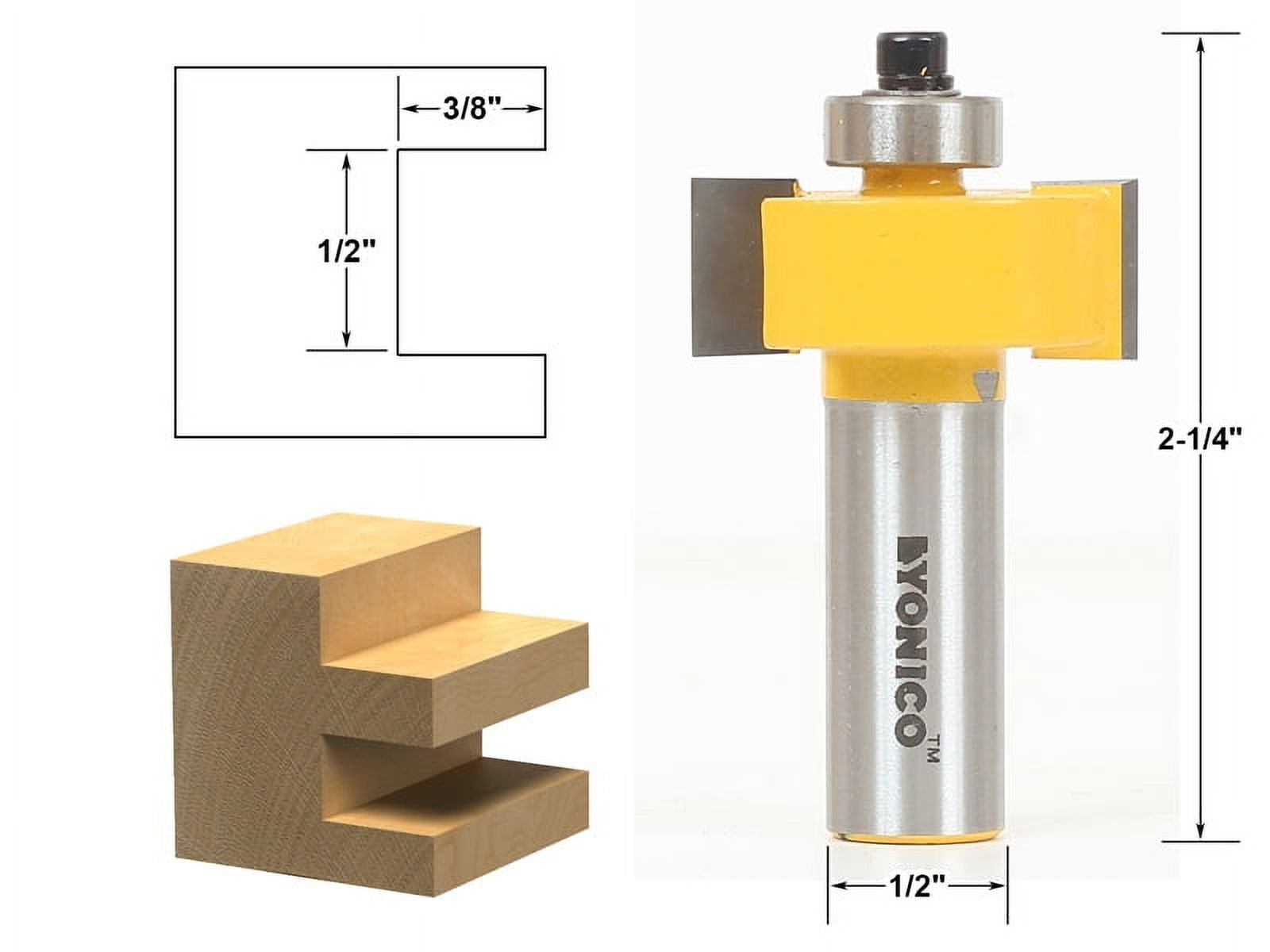

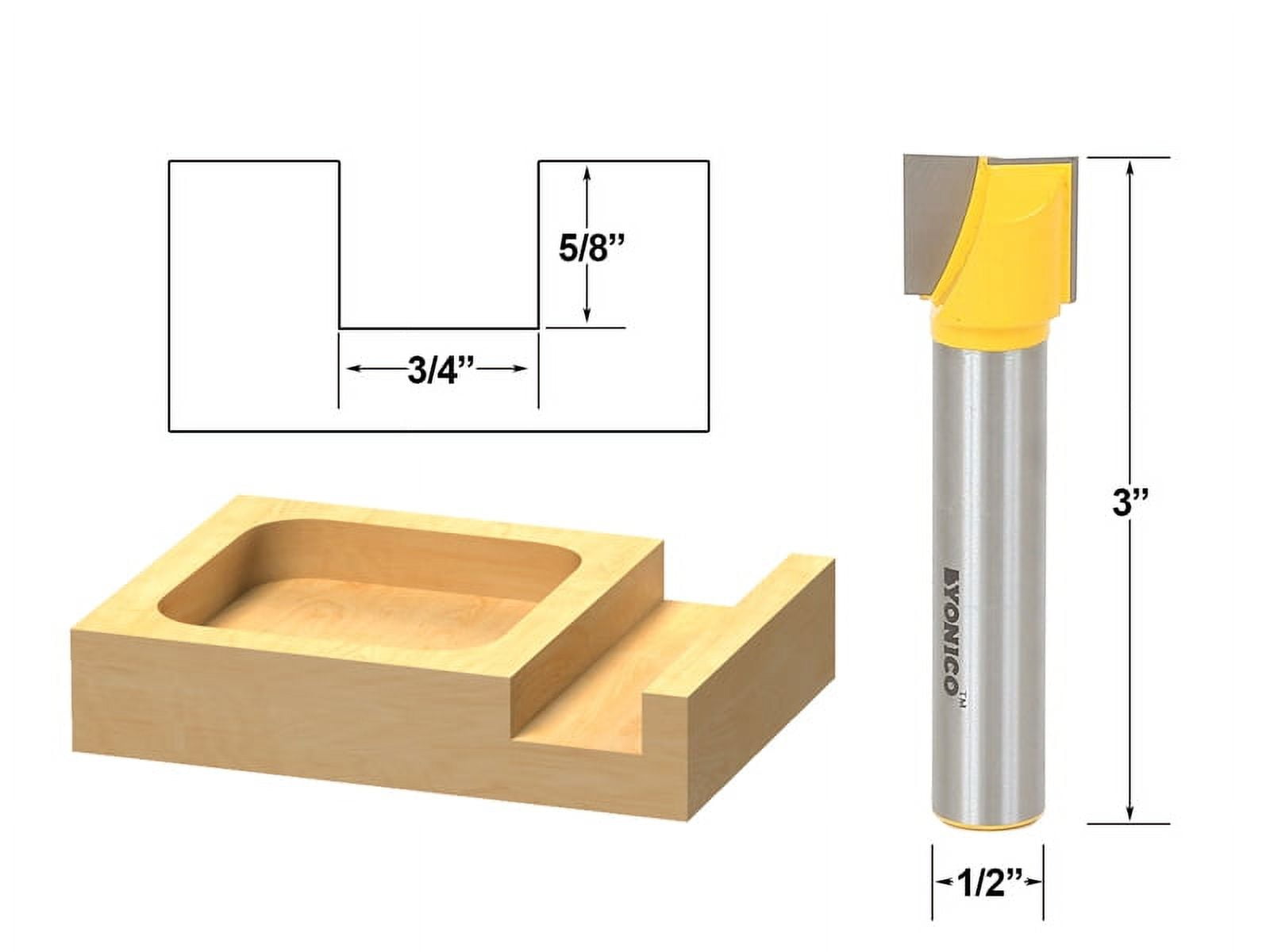

The Yonico 14801 Luthier's Electric Guitar Router Bit Set includes all the essential router bits needed for electric guitar body making. This set will enable you to: • Flush trim the guitar body• Add a round over to the body's edge • Rabbet the body's edge for binding • Groove out the cavities • Bevel the pick guard • Cut intricate inlays This set includes: • 1 Top and bottom bearing flush trim router bit Yonico 14134 - 2" Top and Bottom Bearing Flush Trim Router Bit • 1 Round over router bit Yonico 13162 - 1/4" Radius Round Over Router Bit • 1 Rabbet router bit - Yonico 14187 1/2" High X 3/8" Deep Rabbeting Router Bit • 3 Additional Bearings: Outer Diameter - 5/8" for 5/16" Binding Outer Diameter - 3/4" for 1/4" Binding Outer Diameter - 7/8" for 3/16" Binding • 1 3/4" X 3/4" Bottom cleaning router bit Yonico 14971- 3/4" X 3/4" Bottom Cleaning Long Shank Straight Router Bit • 2 template trim router bits Yonico 14123q - 1/2" Wide X 3/4" High Template Trim Router Bit Yonico 14169q - 1/2" Wide X 1/2" High Template Trim Router Bit • 1 Bevel trim router bit Yonico 14932q - 30° Bevel Trim Router Bit • 1 Down cut solid carbide spiral router bit Yonico 32210-SC - 1/8" Diameter Downcut Spiral Solid Carbide Router Bit Please note: This set includes bits that are 1/2" shank and 1/4" shank. Many parts of the string instrument's body and neck are routed using router bits. Therefore there are a number of router bits that are essentials in a luthier's shop. Pattern, flush trim, beveled edge, rabbet, dovetail, round over, fret board radiusing, inlay bits and bottom cleaning just to name a few. These will route pockets, trim edges, add a design profile edge, rabbet for binding, surface plane, radius finger boards and the list goes on and on.
| Cutting edge material | Tungsten Carbide |
|---|---|
| Size | 1/2" & 1/4" Shank |
| Compatibility | solid body electric guitars |
| Drill bit & set type | Router Bits |
| Piece count | 8 |
| Brand | Yonico |
| Material | Carbide |
| Rec. use | Woodworking |
| Has written warranty | No |
| Model | Yonico 14801 |
